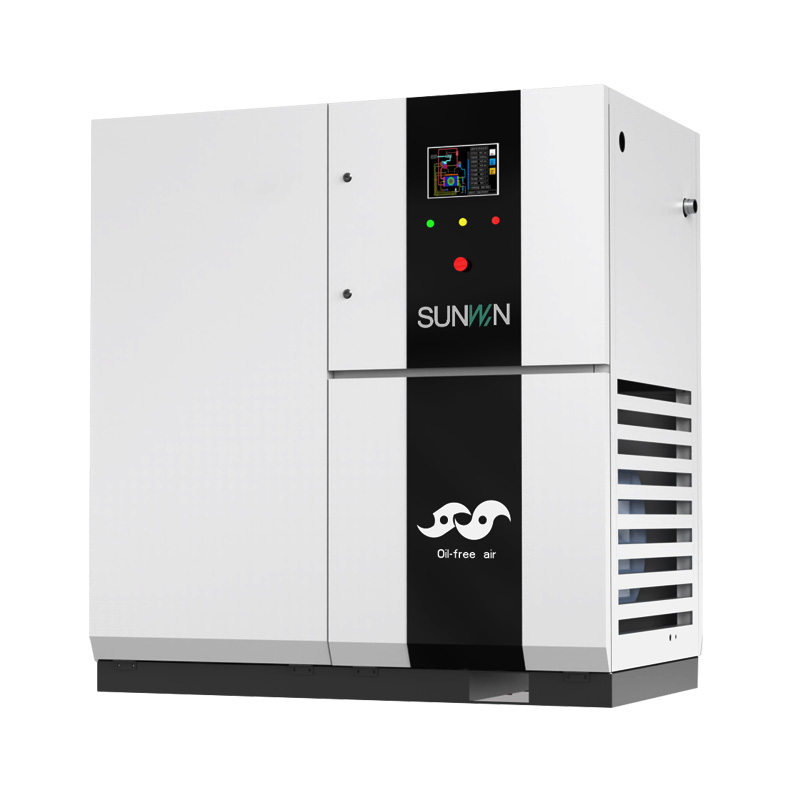

Oil Free Rotary Tooth Compressor
100% Oil Free
Source Factory
ISO 8573-1 Class 0
Seizing the Once-in-a-century Global Change
We have obtained 7 domestic patents, through completely independent research and development of high-end dry oil-free compressor has been achieved mass production, and through years of domestic market test, we want to let the world know, China’s manufacturing quality can also be renowned in the global market. At present, the two core products, oil-free screw compressor and oil-free rotary tooth compressor, compared with foreign brands of oil-free machine, the same quality at a better price, the same price better quality.
25
25 years of industry experience
18
18 years of technology development
300+
300+ oil-free air compressor project experience
500
Annual production of 500 oil-free air compressors
Why Choose Oil-free Rotary Tooth Compressor
More efficient, more environmental friendly, and peace of mind with clean air.
Meeting all requirements of oil-free compressors, providing clean compressed air.By incorporating a compressor terminal with a unique claw structure, it achieves the highest level of exhaust discharge capacity within its range. Additionally the use of air-cooled two-stage compression mechanisms and the latest control methods enhances durability and energy efficiency.
Advantages
High-quality Air
100% oil free air to safeguard your production
Efficiency
State-of-the-art technologies to save time and costs
Complete Solution
Plug& play package for simplified installation and ownership
Reliability & Expertise
Optimized components and easy maintenance
Superb Operator Experience
70 dBA(Low noise levels), compact design
◣ Reliable Production ◥
Non-stop Supply: Designed to operate continuously, ensuring a steady flow of compressed air.
High-Quality Air: Guarantees pure, contaminant-free air, critical for sensitive applications.
◣ Zero Oil Contamination ◥
Oil-Free Design: Eliminates the risk of oil contaminating the air supply, which is vital in industries where even trace amounts of oil can compromise product quality or safety.
◣ Energy Efficiency ◥
Cost Savings: Energy-efficient performance reduces operational costs, contributing to a lower total cost of ownership.
Environmental Impact: Less energy consumption also translates to a smaller carbon footprint.
◣ Low Maintenance ◥
Reduced Downtime: High reliability and fewer maintenance requirements mean less downtime for repairs. Lower
Maintenance Costs: Simplified design and robust components result in fewer parts to replace and maintain.

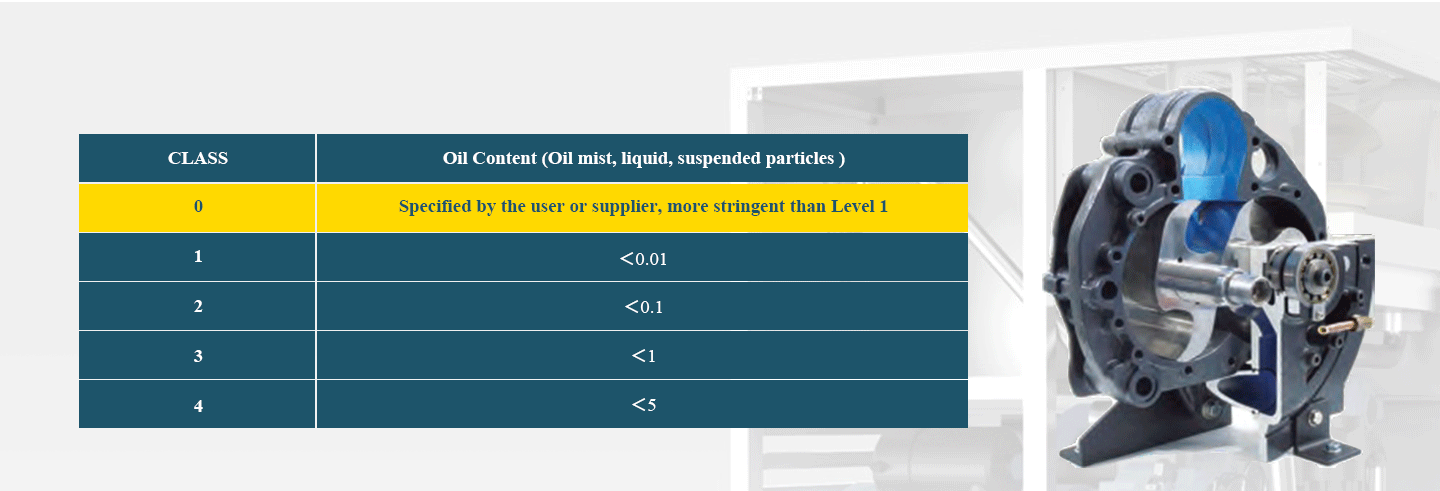

The current IS08573 -1(2010-RRB- grade (five major grades and their corresponding maximum concentrations of total oil content)

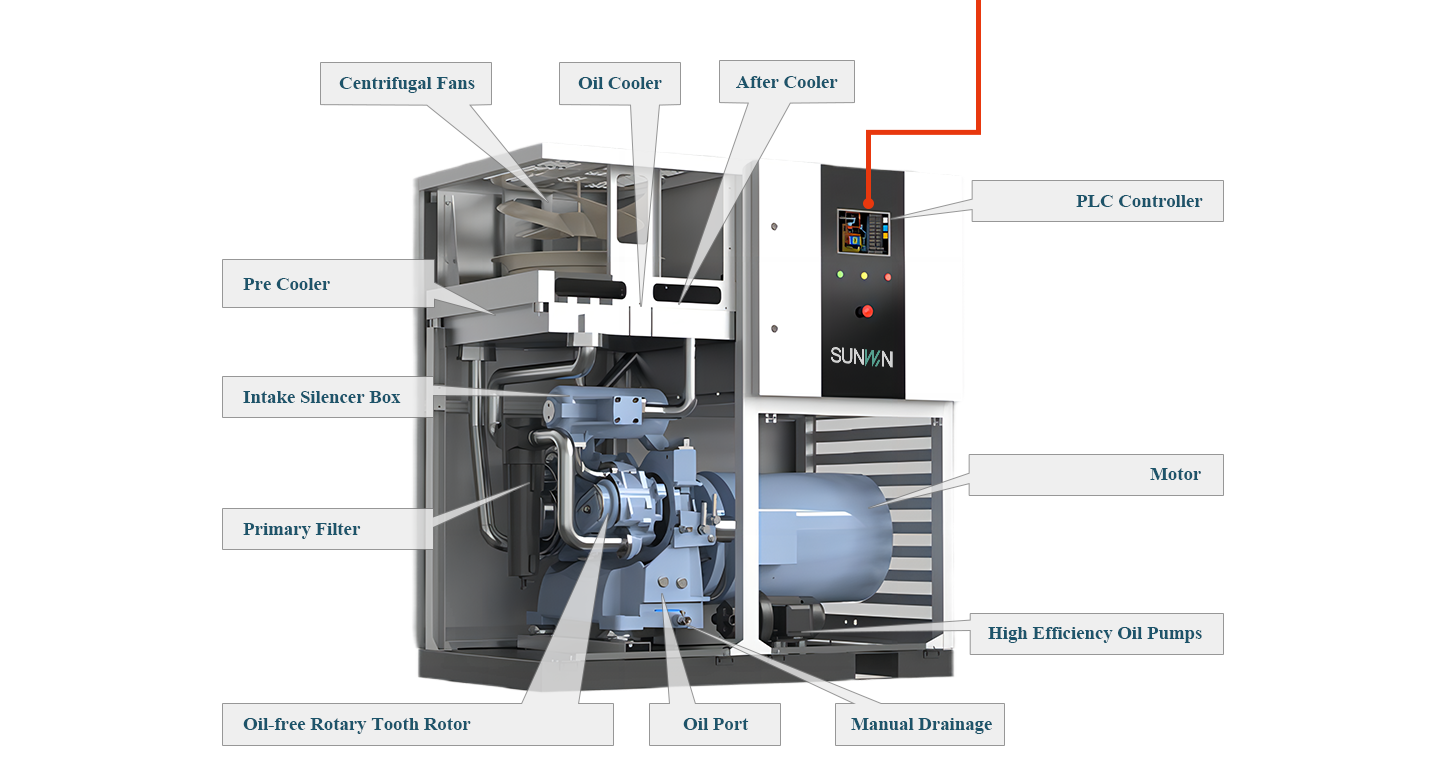

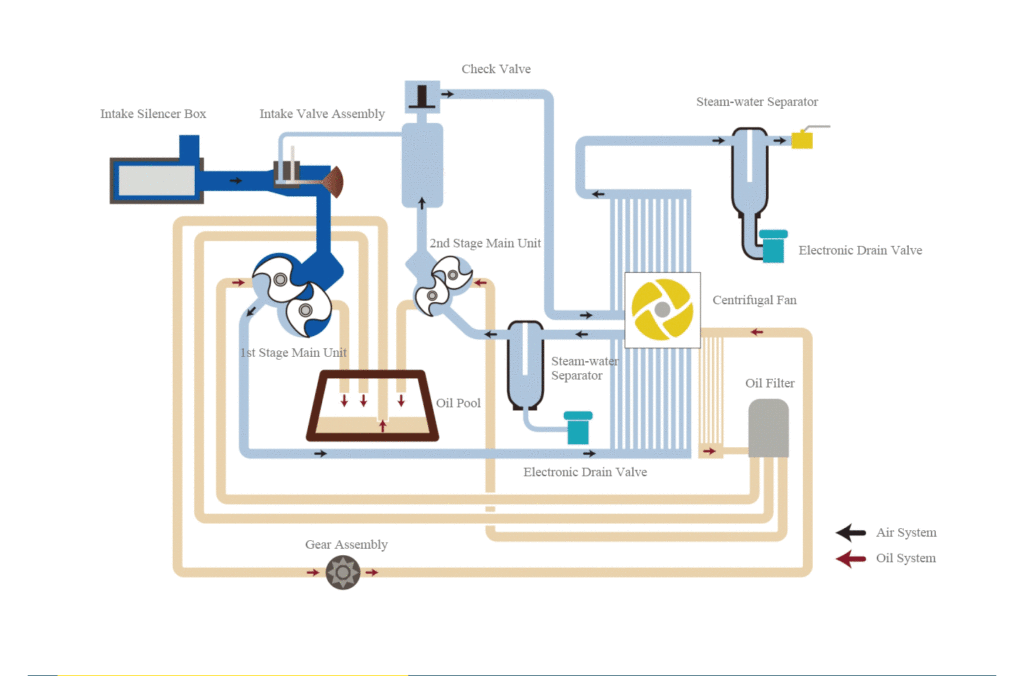

Technical Flow

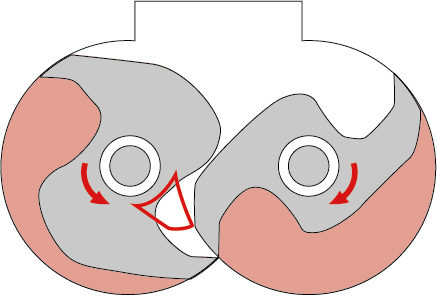

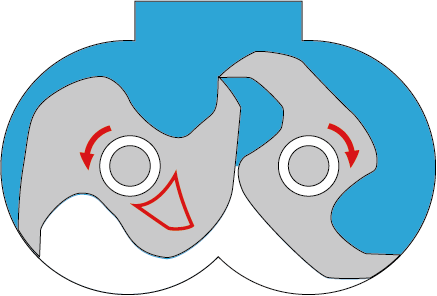

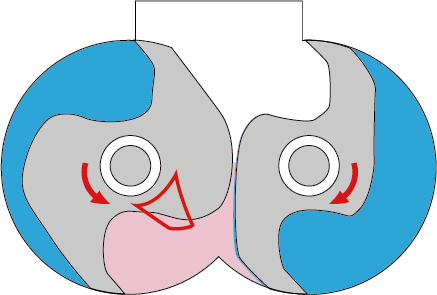

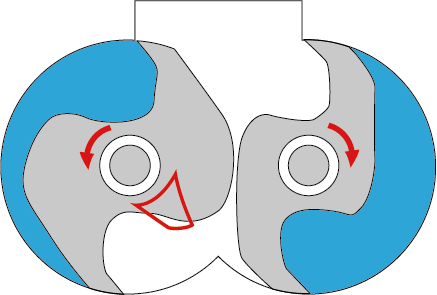

Working Principle

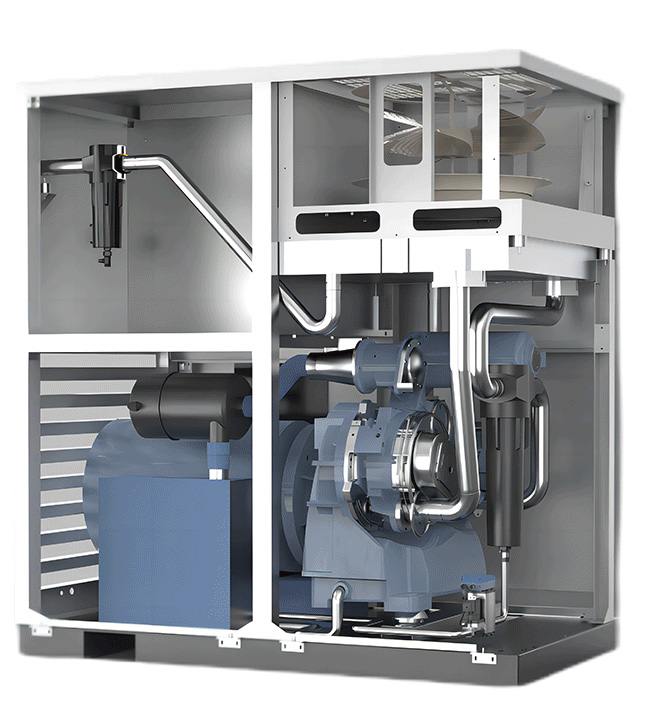

Intermediate Cooler, After Cooler, and Oil Cooler
Horizontally layout inside the enclosure Boosted by the acoustic resonant chamber Greatly reduces the noise emitted by the motor and main unit
Thick Soundproof Outer Cover
Thickened outer cover with high-density sound-absorbing materials Greatly reduces the high-frequency compression noise of oil-free main units and motor noise
IE-4 High-efficiency Energy-saving Motor
Precision flange installation Reduce the transmission energy loss between the main motor and the variable speed gearbox The main motor series adopts IP55 protection level motor
Cascade Two-stage Rotary Screw Compression Main Unit
Compared to single-stage compression main unit systems, lower energy consumption Higher compression efficiency Quick attainment of low-energy consumption operating conditions during unloading
Standard-equipped Main Unit Rotor Blow-off Protection Device
All series of oil free rotary tooth compressor units are equipped with a standard main unit rotor dry gas blow-off protection
device Eliminates the risk of equipment corrosion and damage due to moisture during standby periods in the rotation cycle

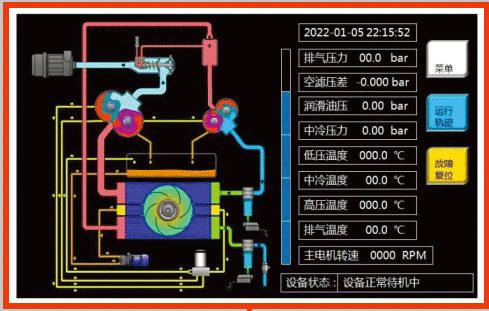

Intelligent Control Electrical Drive System
SD start-up workshop 3D system Equipped with star-delta configuration to reduce the large impact current and mechanical parts’ rigid impact, greatly extending the lifespan of the mechanical transmission system
Centrifugal Fan
Utilizes high-flow, low-speed centrifugal fans While ensuring effective cooling performance of the equipment, the overall exhaust noise of the unit is greatly reduced
Lubricating Oil Pump
Independent axial piston lubricating oil pump Ensures that the bearings and gears of the main unit are protected by oil film under any operating conditions
Air Filter
Uses imported high-capacity filter cores of high-quality German technology, with a cyclone pre-filtering system to ensure 99.5%
filtration efficiency for SAE fine particle removal. SAE submicron filtration efficiency reaches 99.9%, providing long service
life, high reliability, and extended replacement cycles Supported by the inlet acoustic resonance silencer box, ensuring excellent
sound insulation and noise reduction effects
